BJG1326 CNC Veneer Rotary Clipper
BJG1326 CNC Veneer Rotary Clipper

BJG1326 CNC Veneer Rotary Clipper

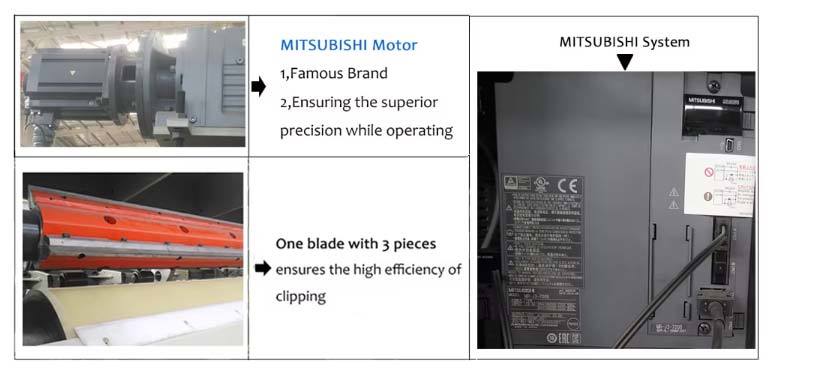

Blade shaft and veneer conveying are driven by servo control system, can auto cut veneer head and tail cleanly, improve production efficiency, lower production cost. Max. feeding speed can reach to 100m/min. It is easy to operate after setting the procedure.

Key words：

BSY

Category ：

CNC Veneer Rotary Clipper

E-MAIL

E-mail：

sdbsygroup@aliyun.com

PRODUCT MESSAGE
RELATED PRDUCTS

Blade shaft and veneer conveying are driven by servo control system, can auto cut veneer head and tail cleanly, improve production efficiency, lower production cost. Max. feeding speed can reach to 100m/min. It is easy to operate after setting the procedure.



Main tcchnical paramcters

MODEL

BJG1333

BJG1326

BJG1320

BJG1313

Maximum cutting width

3300mm

2650mm

2000mm

1450mm

Clipper length

3380mm

2700mm

2150mm

1500mm

Maximum cutting line speed

100m/min

100m/min

100m/min

100m/min

Maximum transport speed

100m/min

100m/min

100m/min

100m/min

Knife quantity

3pcs

3pcs

3pcs

3pcs

Cutting power

11kW

7.5kW

7.5kW

7.5kW

Transport power

5.5kW

3.7 kW

3.7 kW

3.7 kW

Veneer thickness

0.5~3mm

0.5~3mm

0.5~3mm

0.5~3mm

Knife grinding angle

18~20°

18~20°

18~20°

18~20

Overall sizes

6700×4580×1740mm

6000×3860×1740mm

6000×3275×1740mm

6000×2684×1740mm

Weight

 4300kg 3500kg 3200kg 3000kg

We provide you with complete plywood and LVL overall solutions, which can be customized according to your requirements.
