BDD1126/4D-1 Auto Veneer Stacker
BDD1126/4D-1 Auto Veneer Stacker

BDD1126/4D-1 Auto Veneer Stacker

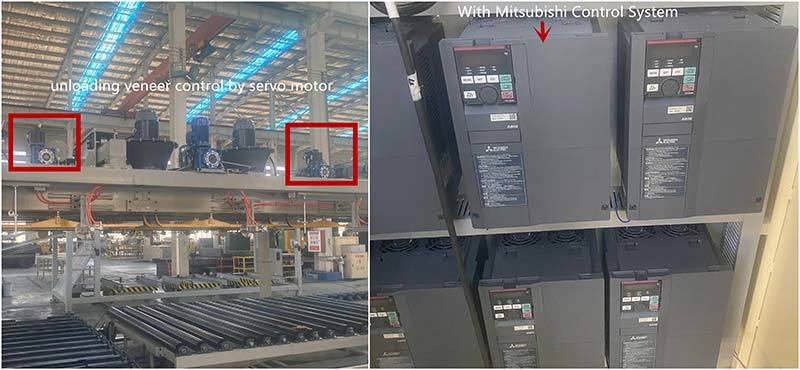

Controlled by mechanical, hydraulic ,pneumatic, electrical procedure, realize veneer auto stacking, improve production efficiency, save production cost.

Key words：

Auto Veneer Stacker

Category ：

Veneer Stacker

E-MAIL

E-mail：

sdbsygroup@aliyun.com

PRODUCT MESSAGE
RELATED PRDUCTS

Controlled by mechanical,hydraulic,pneumatic, electrical procedure, rcalize vencer auto slacking, improve production efficiency, save production cost.

Main technical parameters

MODEL

BDD1133/5D-3

BDD1133/5D-1

BDD1126/4D-3

BDD1126/4D-2

BDD1126/4D-1

BDD1113/8D-2

BDD1113/8D-1

BDD1113/4D-2

BDD1113/4D-1

Stack size

10×5 feet

10×5 feet

8×4 feet

8×4 feet

8×4 feet

4×8 feet

4×8 feet

4×4 feet

4×4 feet

Maximum width

3200mm

3200mm

2600mm

2600mm

2600mm

1350mm

1350mm

1350mm

1350mm

Veneer thickness

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

0.8~3mm

Maximum speed

120m/min

120m/min

120m/min

120m/min

120m/min

120m/min

120m/min

120m/min

120m/min

Maximum height

1000mm

1000mm

1000mm

1000mm

1000mm

1000mm

1000mm

1000mm

1000mm

Machine total power

86.8kW

34.3kW

60.4kW

40.85kW

23.1kW

42.65kW

23.1kW

34.65kW

19.1kW

Machine size

12780×3820×3320mm

8300×3820×320m

10850×3160×3320mm

9380×3160×320mm

7880×3160×3320mm

14350×2250×3320mm

11680×2250×3320mm

10500×2250×3320m

9100×2250×3320mm

Weight

 8200kg 5200kg 7800kg 6800kg 3500kg 6700kg 3600kg 4500kg 3000kg

We provide you with complete plywood and LVL overall solutions, which can be customized according to your requirements.
